Mini-Wire

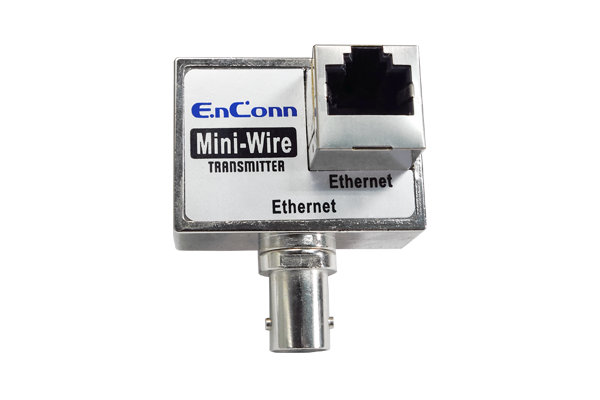

Mini-Wire Tx

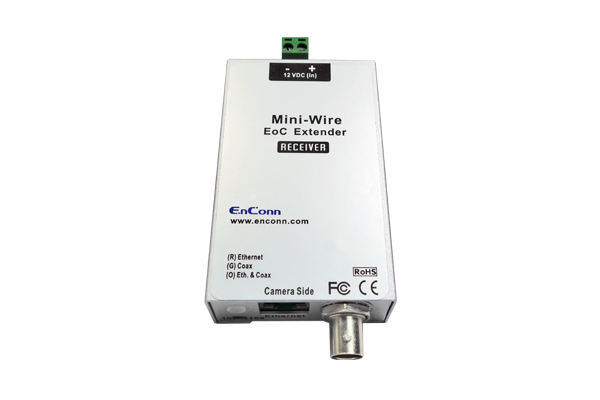

Mini-Wire Rx
Description

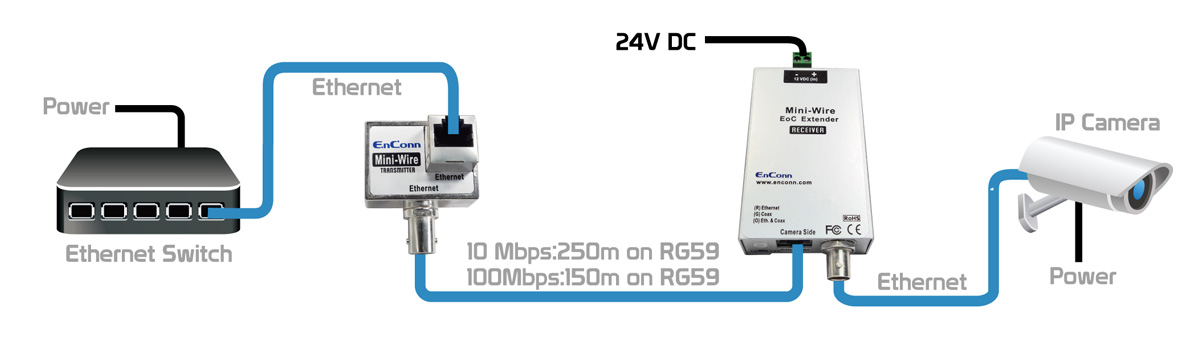

The Mini-Wire enables Ethernet data to go over coaxial cables. It gets power through 12V DC. By adopting innovative technology, the transmission distance of data can reach 150~ 250m over the coax. The solution provides installers with an easier, faster, and more cost-effective way to replace analogue systems with IP cameras.
Specification
| Mini-Wire Tx | Mini-Wire Rx | |
| Electrical | ||
|---|---|---|
| Cable type | 75 ohm RG59 or better | |
| Speed | 10/100Mbps for full duplex | |
| Transmission distance | 10Mpbs : 250m @ RG59 | |
| 100Mpbs: 150m @ RG59 | ||
| Power | ||
| Power consumption | 0 | <=3W |
| Physical | ||
| Enclosure material | zink alloy | aluminum alloy |
| Dimension | 47 x 40 x 26 mm | 90 x 55 x 26.5 mm |
| Operating temperature | -10 ~ 60 degree C | |
