Mini-Power

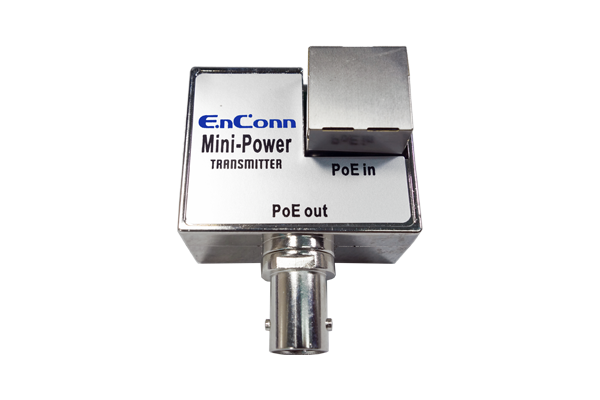

Mini-Power Tx

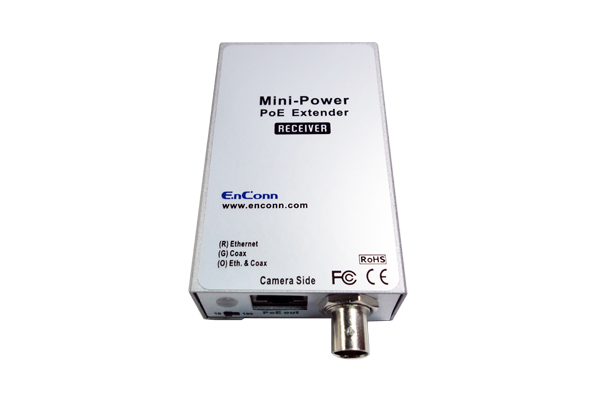

Mini-Power Rx
Description

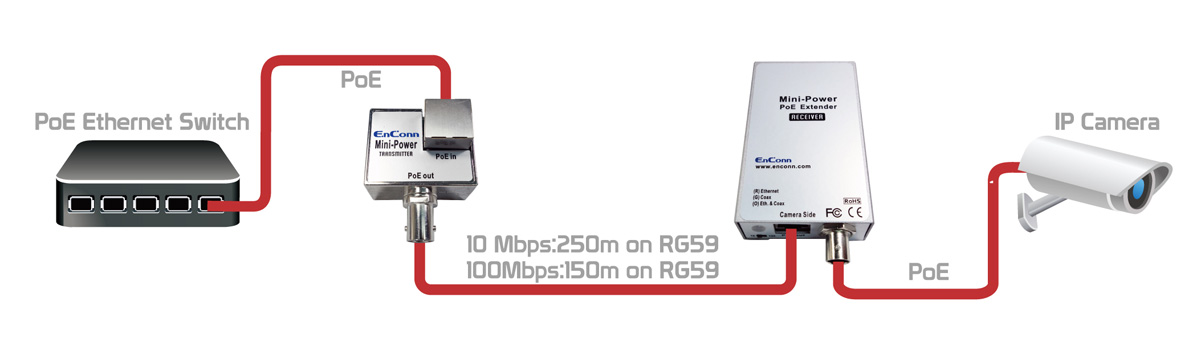

The Mini-Power enables Ethernet data and PoE power to go over coaxial cables. It gets power through a PoE switch. By adopting innovative technology, the transmission distance of data plus power can reach 150~ 250m over the coax. The solution provides installers with an easier, faster, and more cost-effective way to replace analogue systems with IP cameras.
Specification
| Mini-Power Tx | Mini-Power Rx | |
| Electrical | ||
|---|---|---|
| Cable type | 75ohm RG59 or better | |
| Standard | IEEE 802.3af/at or Pre-at | |
| Speed | 10/100Mbps full duplex | |
| Transmission distance | 10Mpbs : 250m @ RG59 | |
| 100Mpbs: 150m @ RG59 | ||
| Power | ||
| Remote powering ability | --- | Max 30W |
| Power consumption | 0 | <=3W |
| Physical | ||
| Enclosure material | Zink alloy | Aluminum alloy |
| Dimension | 40 x 32 x 20mm | 90 x 55 x 26.5 mm |
| Operating temperature | -10 ~ 60 degree C | |
