IPC-600P

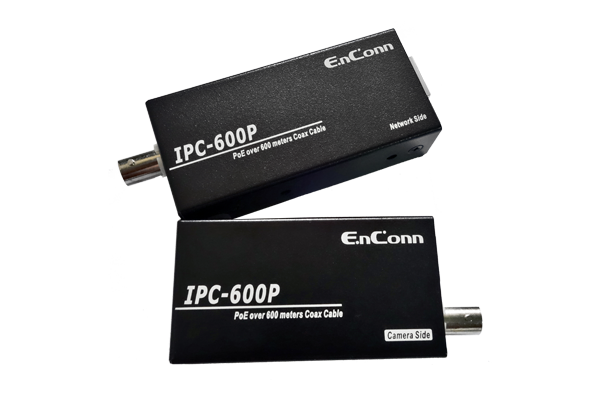

IPC-600P network side / IPC-600P camera side
Description

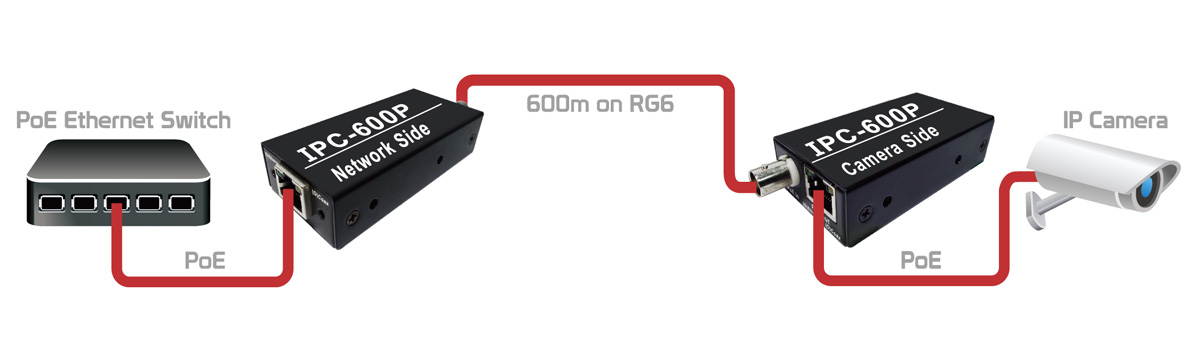

The IPC-600P enables Ethernet data and PoE power to go over coaxial cables. It gets power either from a PoE switch or through a power adapter. By adopting innovative technology, the range of the IPC-600P extends Ethernet and PoE power up to 600m over coaxial cable. The solution provides an easier, faster, and more cost-effective way for migration of analog to IP camera transmission.
Specification
| IPC-600P Network side |
IPC-600P Camera side |
|
| Electrical | ||
|---|---|---|
| Cable type | Almost all coaxial cables | |
| Standard | IEEE 802.3af/at | |
| Speed | 100 Mbps throughput | |
| Transmission distance | 500m over RG59 | |
| 600m over RG6 | ||
| Power | ||
| Suitable power adapter (optional) | 48~56V | 48~56V |
| Remote powering ability | --- | Max 30W |
| Power consumption | 3.2W | 3W |
| Physical | ||
| Enclosure material | Aluminum Alloy | |
| Mounting | Wall Mountable | |
| Dimension | 90 * 42 * 22mm | 79 * 42 * 22mm |
| Operating temperature | -10 ~ 60 degree C | |
| Accessories | ||
| L Bracket | ||
| 56V Power Supply | ||
| Rack-Mount Tray | ||

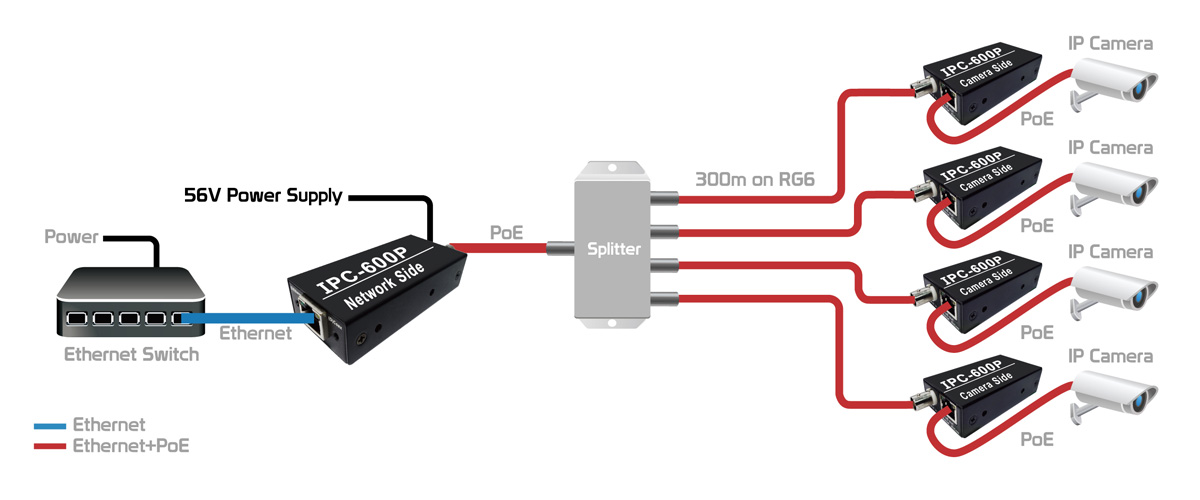

| 4-way Splitter | ||
