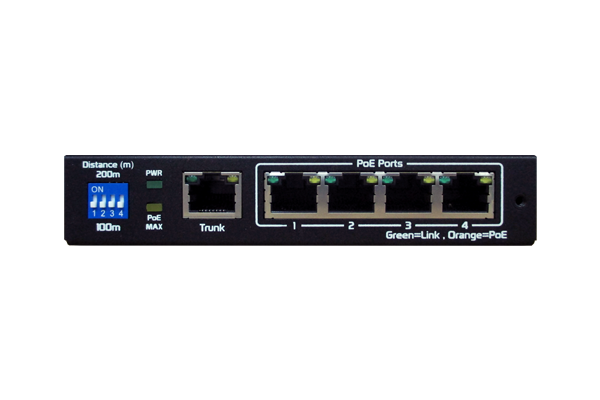

Cam-Bridge
Description

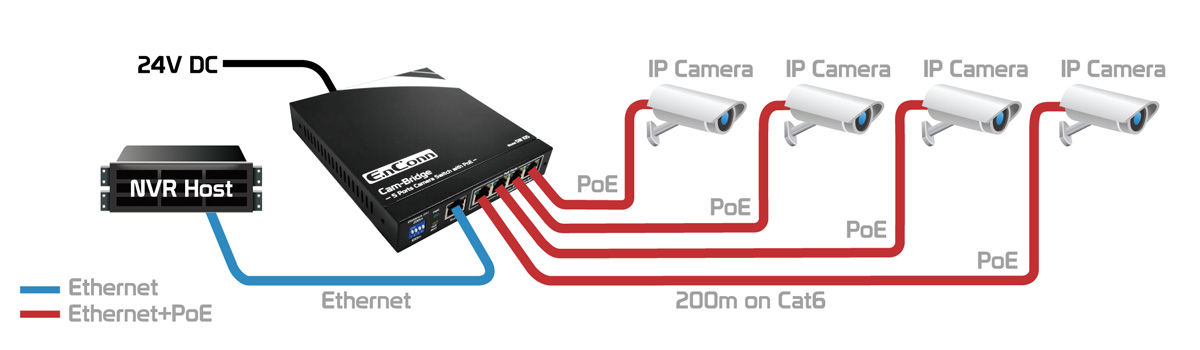

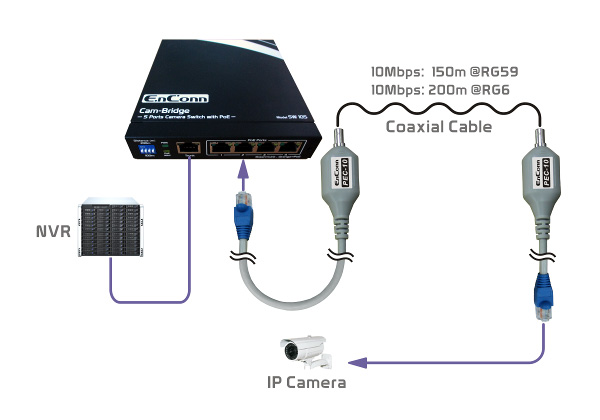

This Cam-Bridge is specially designed for IP Camera installation. By adopting novel technology, the Cam-Bridge can transmit power and Ethernet signal over 200m Cat5e or better cable without extra devices needed. In addition, a novel loopback protection technology is applied. With EnConn's passive coaxial adapter, the Cam-Bridge can provide power and data link through coaxial cable to remote IP cameras.
Specification
| Electrical | |
|---|---|
| Camera Port | 4 |
| Trunk Port | 1 |
| Port speed | 10/100Mpbs |
| Transmission Distance | 100m at 10/100Mpbs |
| 200m at 10Mbps | |
| PoE Capability | IEEE 802.3 af & at |
| Power | |
| Maximum PoE Output | 55W @ 65W power adaptor |
| 75W @ 90W power adaptor | |
| Maximal power per port | >30W |
| DC Input Voltage | 24VDC |
| PoE Management | Power reading & power on/off |
| Physical | |
| Operating Temperature | 0 ~ +50 degree C |
| Operating Humidity | 10%~80% RH, non-condensing |
| Physical Dimensions | W132*D148*H28 mm |
| Weight | 0.485 kg |
| Rack mount integrated | Yes |
| Wall mount capability | Yes |
