Products
eco-power130TR
eco-power130T-BNC
eco-power130R-BNC
Description

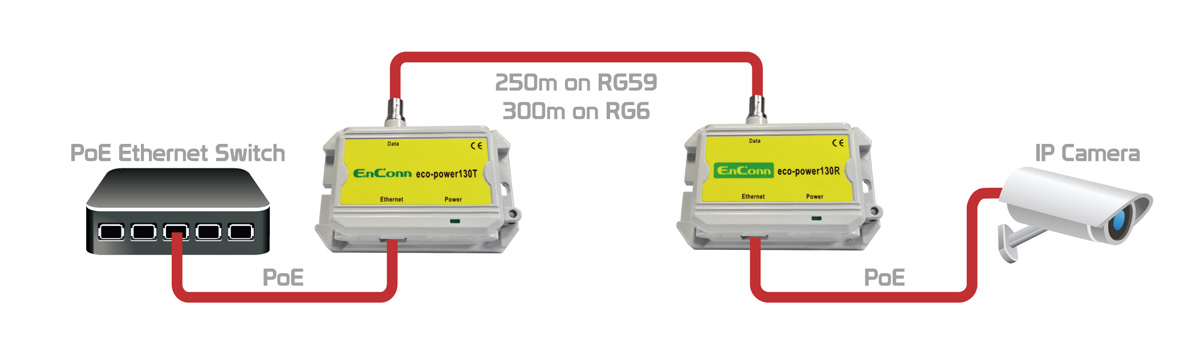

The eco-power130 enables Ethernet data and PoE power to go over coaxial cables. It gets power through a PoE switch or a PoE injector. By adopting our technology, the transmission distance of data plus power can reach 200~300m over the coax. The solution provides installers with an easier, faster, and more cost-effective way to replace analogue systems with IP cameras.
Specification
| eco-power130T | Eco-power130R | |
| Electrical | ||
|---|---|---|
| Cable type | 75 ohm RG59 or better | |
| Standard | IEEE 802.3af/at or Pre-at | |
| Speed | 10/100Mbps for full duplex | |
| Ethernet cable | 1~100m at both ends | |
| Transmission distance | 200m @RG59 coaxial cable | |
| 300m @RG6 coaxial cable | ||
| Power | ||
| Remote powering ability | --- | Max 33.5W |
| Power consumption | 2.5W | 2.5W |
| Power range for PD | minimal current 50mA | |
| Physical | ||
| Enclosure material | aluminum alloy | |
| Mounting | wall mountable | |
| Dimension | 112 x 72 x 31.5 mm | 112 x72 x 31.5 mm |
| Operating temperature | -10 to +60 degree C | |
